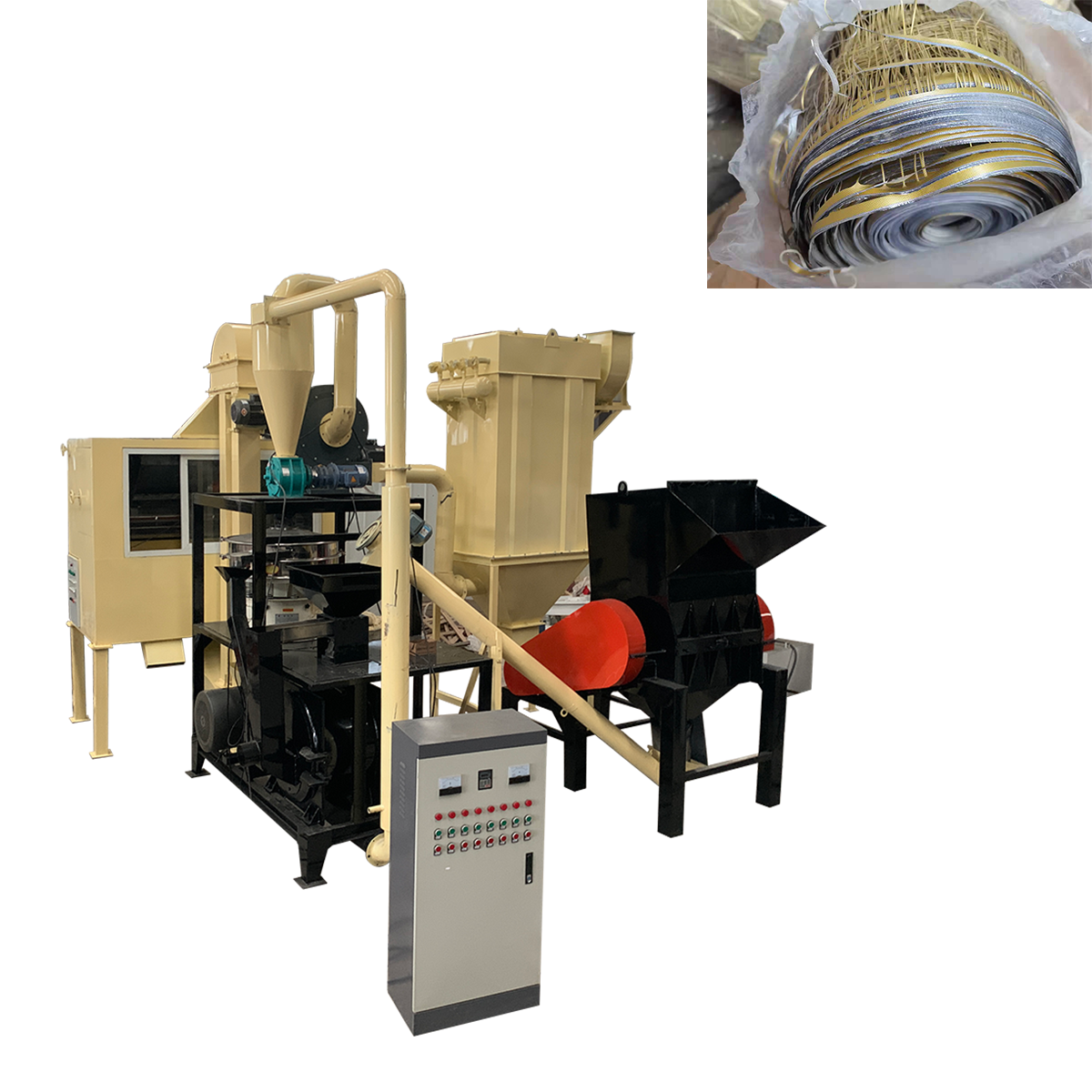

Aluminum plastic separation recycling machine is used to separate and recycle aluminum and plastic from scrap aluminum plastic composite materials through a crushing, grinding, eddy-vibrating screen and electrostatic separation process. The process adopts totally dry type and physical separation method, no water, no fire, no chemical, completely environmental friendly. The aluminum plastic separation machine is applicable to process all kinds of aluminum-plastic leftover materials, such as waste scraps from pharmaceutical factory, aluminum-plastic panels, aluminum-plastic film and other aluminum foil packaging. The separation rate of aluminum and plastic could reach about 99%, which the recycled aluminum could be directly used for smelting aluminum ingots, or directly used in aluminum powder factory, fireworks plant and aluminum plant, while the separated plastic can be used to make plastic sheets, tubes, packages and water pipes. This makes the aluminum plastic separation recycling business has a big potential market.
Product Details
| Model | Capacity | Power(kw) | Weight(ton) |
| YS-200 | 200kg/h | 55 | 5.8 |
| YS-300 | 300kg/h | 62 | 7.5 |
| YS-600 | 600kg/h | 98 | 12.5 |
| YS-1200 | 1200kg/h | 170 | 19.5 |
How to Work?
Various raw materials
All kinds of aluminum and plastic composite such as blister, aluminum plastic plate, alumi-
num plastic foil, and aluminum plastic package bags etc.
Process of production
The aluminum and plastic materials firstly crushed by the knife crusher into 10mm pieces.
Then grinding by the water cooling turbo type grinding machine into aluminum and plastic
fine powders.
Separated by the rotary screen, the big size will back into the grinding machine and the fine
powders will into the electrostatic separator,
Finally the aluminum and plastic would be separated.
