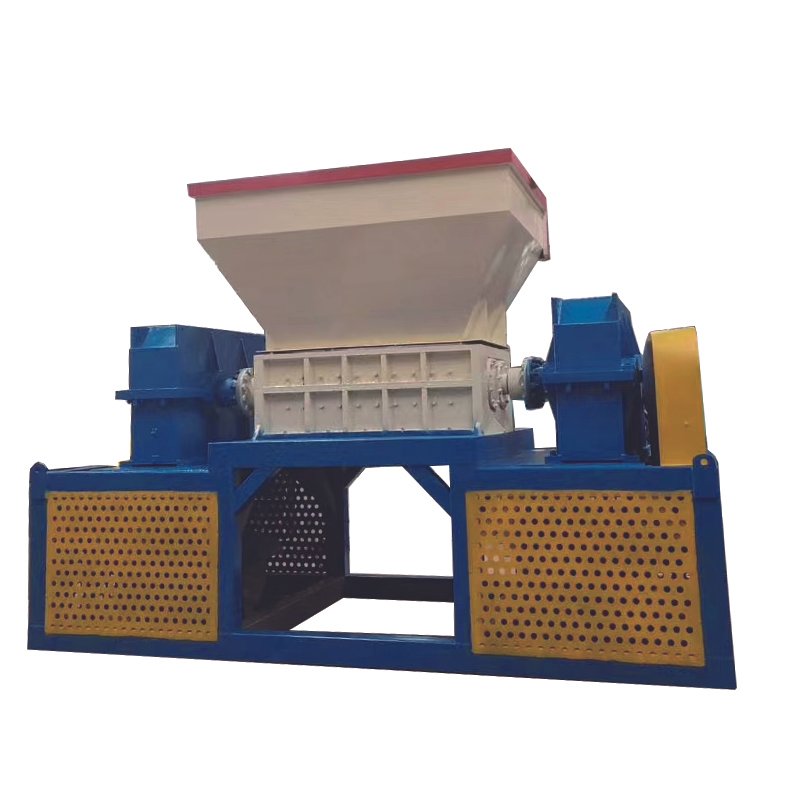

Miracle double-shaft shredder Machine is a multi-functional, heavy-duty, dual-motor driven, two-shaft crusher in recycling industry, which can provide various power and shaft speed configurations to suit a wide range of applications, such as recycling of scrap metal, plastic, paper, wood and so on. Lower and lower energy consumption, miracle shredder is the best choice for you, send us your material, we will provide you suitable machine and price.

How to work?

Miracle double-shaft shredder machine is a multi-functional shredder machine, it can use for recycling of aluminium can, automobile hub,cardboard, computer hard disk, computer hardware, waste furniture, hard disks, hdpe pipe, iron plate, metal barrel, metal chip plastic, wood, pcb, e-waste, plastic film sheet, electric cable, rubber, textile, timber, tin cans, foam, basket etc.

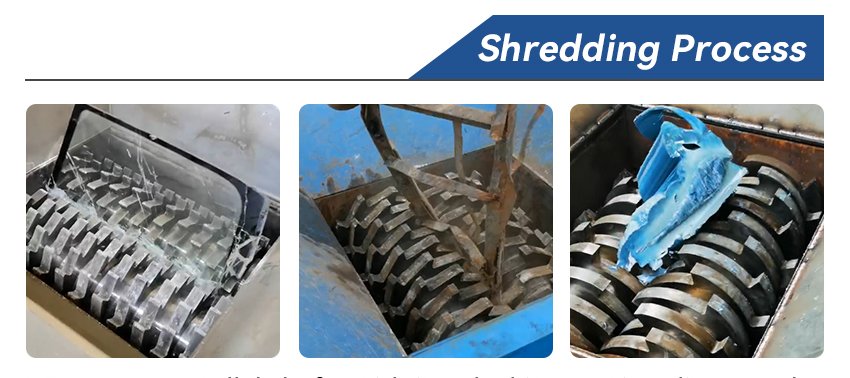

It uses two parallel shafts with interlocking cutting discs, so the material can be shredded longitudinally and transversely. The cutting disc has a pointed blade that grabs the material and pulls it into the cutting chamber, making it particularly effective when chopping large hollow containers.

The shredder is used for finely crushing raw materials or scraps, typically used to process them into smaller sizes. A representative example is the shredding of plastic or rubber scraps as raw materials, which are melted and granulated to be used to remake plastic bottles, tires, trash cans, and so on.

Shredder Parameter

Model	Reducer	Power(kw)	Size(mm)
YS-SSD200	250*1	5.5*1	1200*560*1000
YS-SSD400	400*1	11*1	1500*1100*1550
YS-SSS400	400*2	11*2	2200*1100*1550
YS-SSD600	400*1	15*1	1600*1100*1650
YS-SSS600	400*2	15*2	2400*1100*1650
YS-SSS800	500*2	22*2	3000*1300*1800
YS-SSS1000	650*2	30*2	3800*1700*1950
YS-SSS1200	750*2	37*2	4200*1800*2000
YS-SSS1400	850*2	45*2	5000*2000*2100
YS-SSS1600	ZSY400	75*2	5600*2200*2300
YS-SSS1800	ZSY500	90*2	6000*2400*2350
YS-SSS2000	ZSY630	110*2	6500*2600*2400

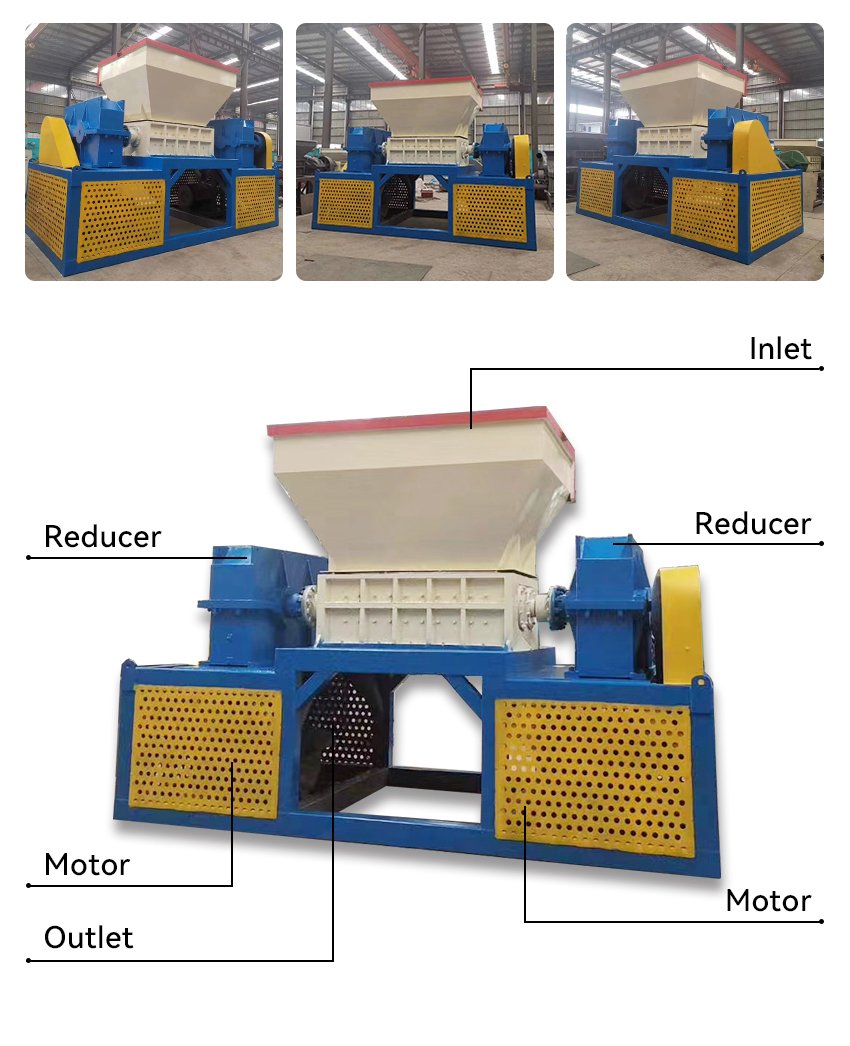

Main Part
