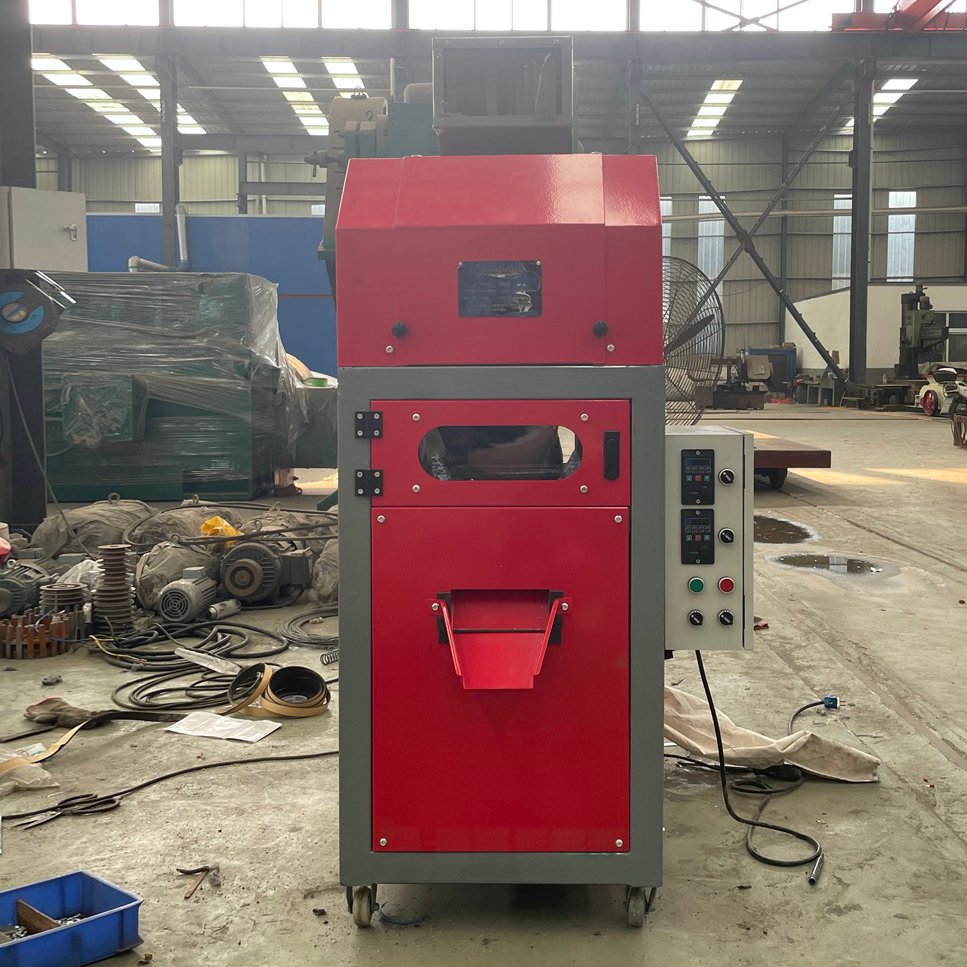

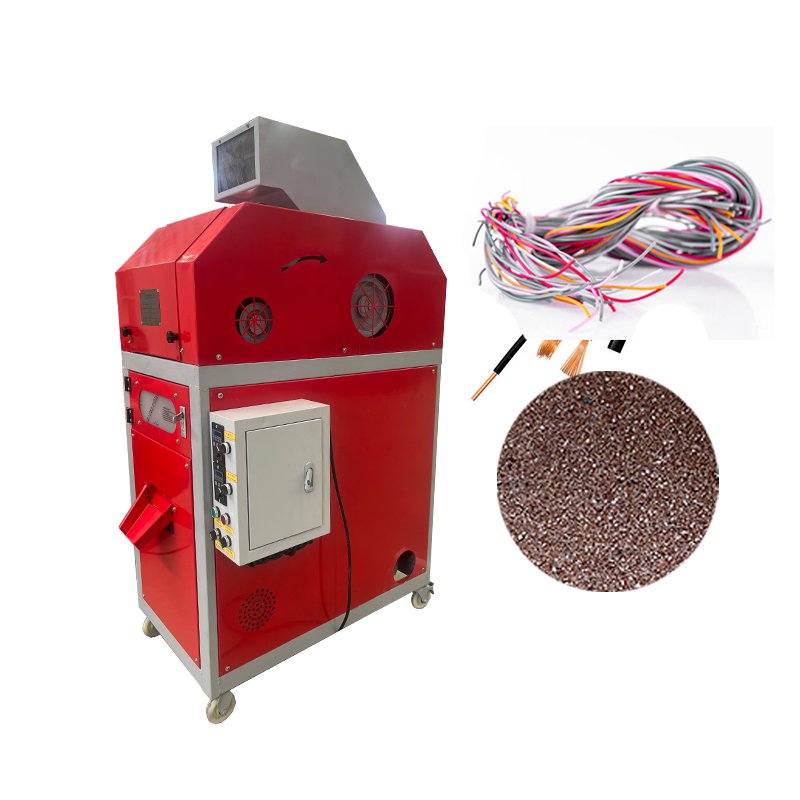

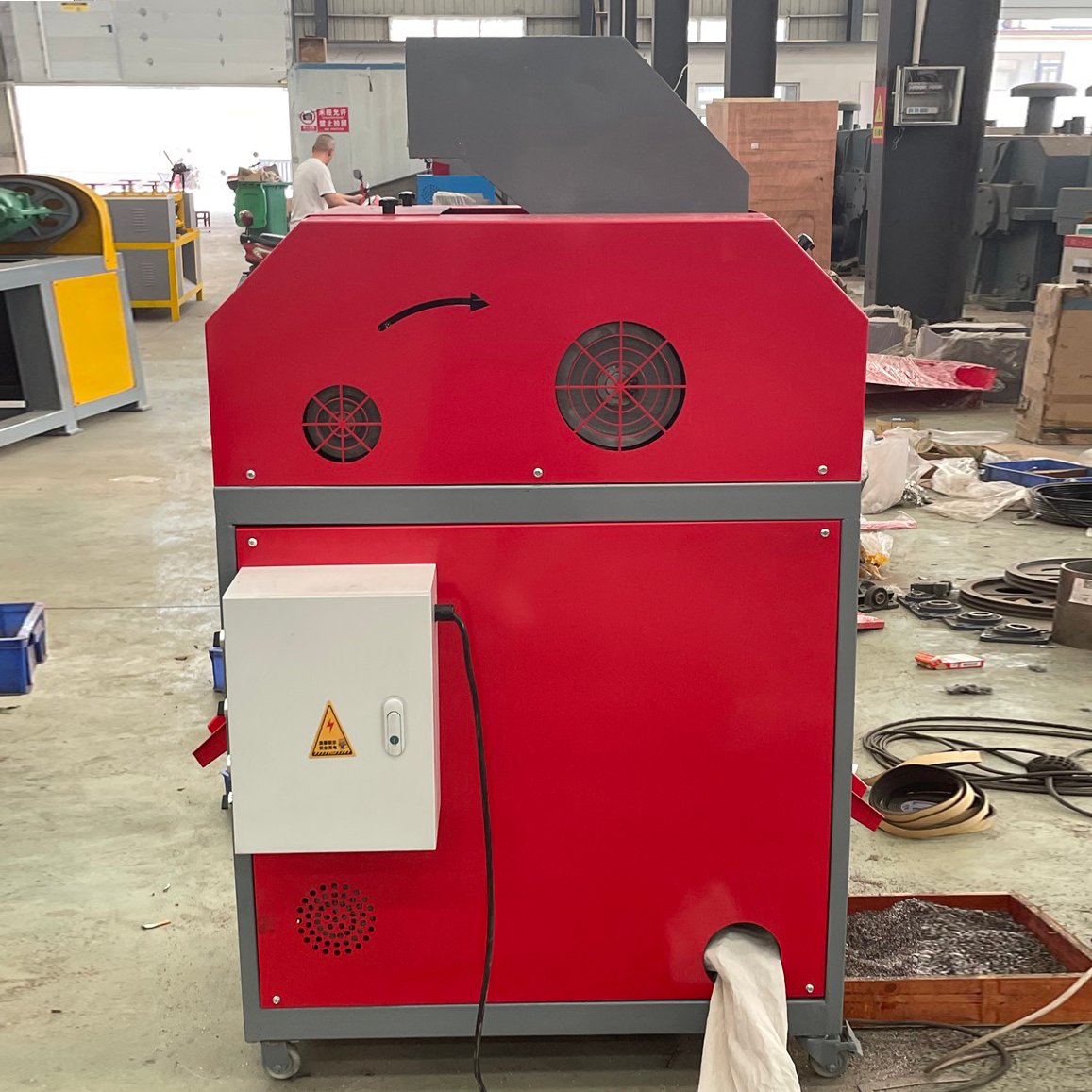

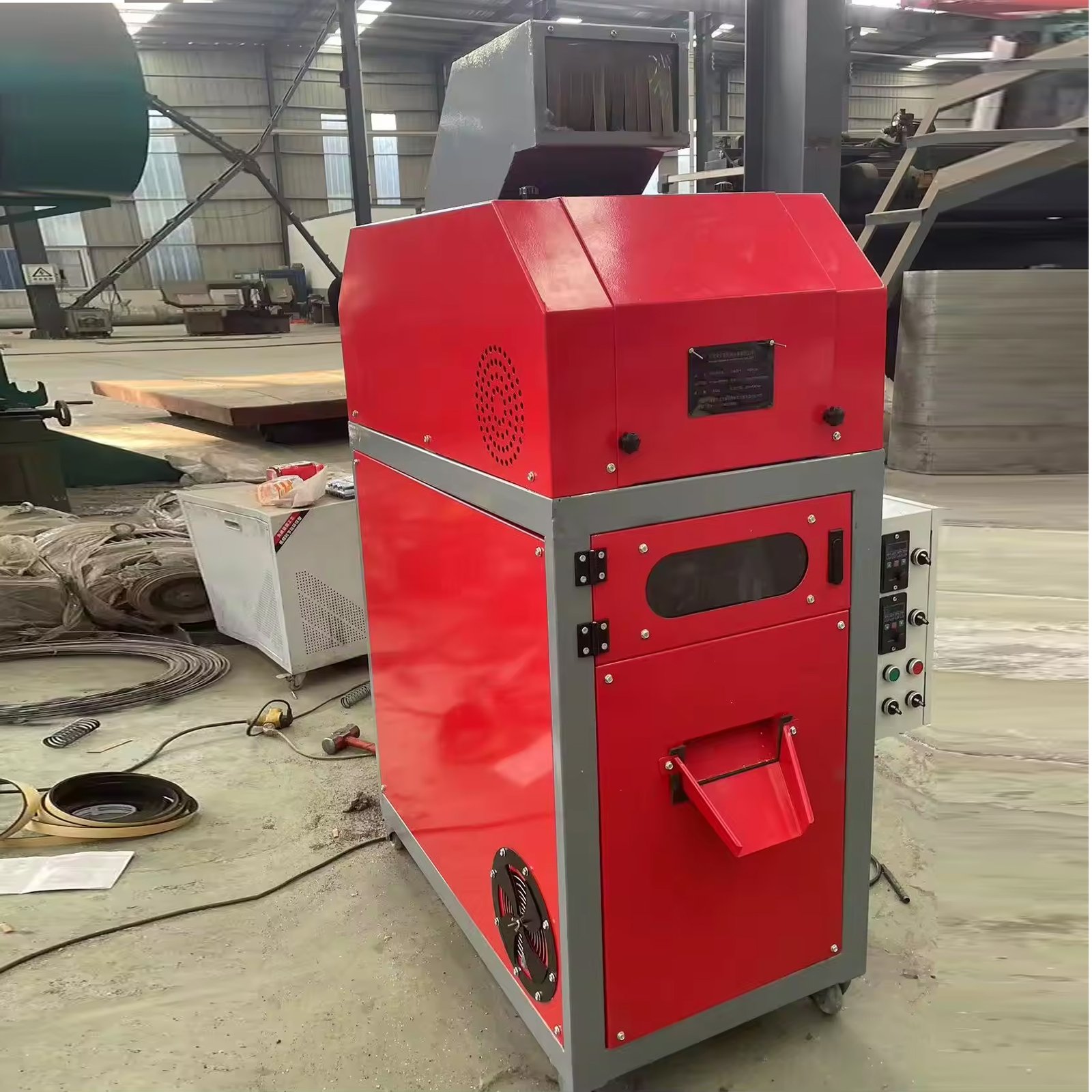

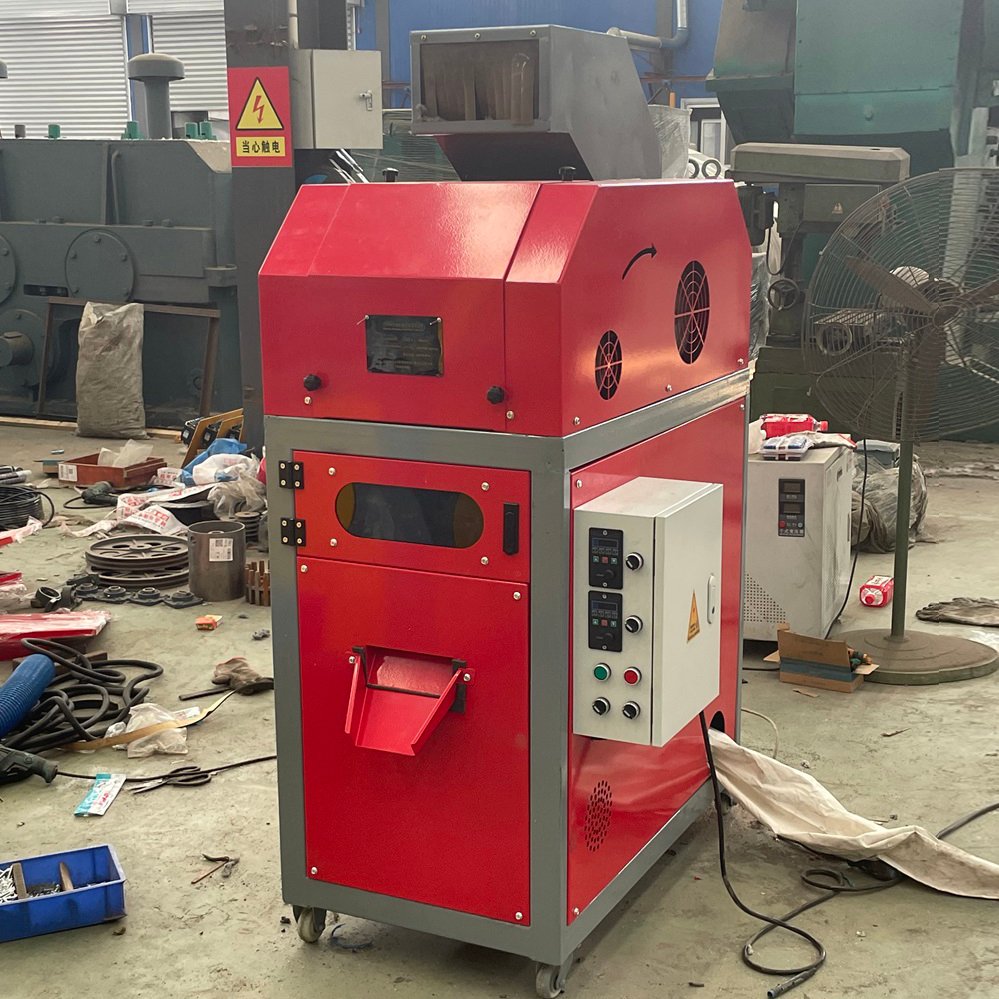

Miracle TM 260 Copper cable wire granulator machine is for recycling of small section scrap wire and cable, which diameter is below 20mm, such as car wire, motorcycle wire, communication cable and so on. It has high economic efficiency, separation rate is 99%,dust collect efficiency is 99%. The capacity is from 50-80kg/h, which is the most popular mini granulator machine. Send us your needs, we can provide you suitable size.
Product Details
Technical Parameter
| Model | YS-TM260 |
| Power | 5.67KW |
| Capacity (kg/h) | 50-80kg |
| Size(m) | 1.23*0.735*1.83 |
| Weight（KG） | 500kg |

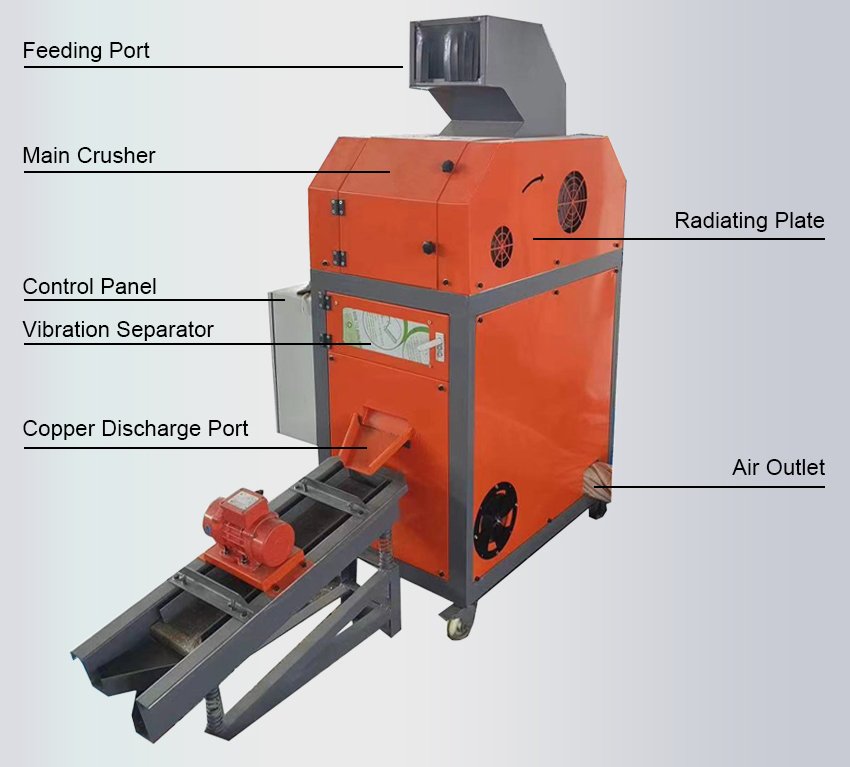

How to Work?
Waste Copper Cable Granulating Machine is mainly used to all kinds of waste copper wire, Automobile electrical wire or the electric wire of car, motorcycle electric wire, computer case wire and communication cable, etc.
Shredding and crushing: Put Scrap wire and cable into shredder for primary shreddingmaking the material size about 20mm. and then the iron metal is taken out magnetic sep.arator, the remaining materials crushing through crusher.

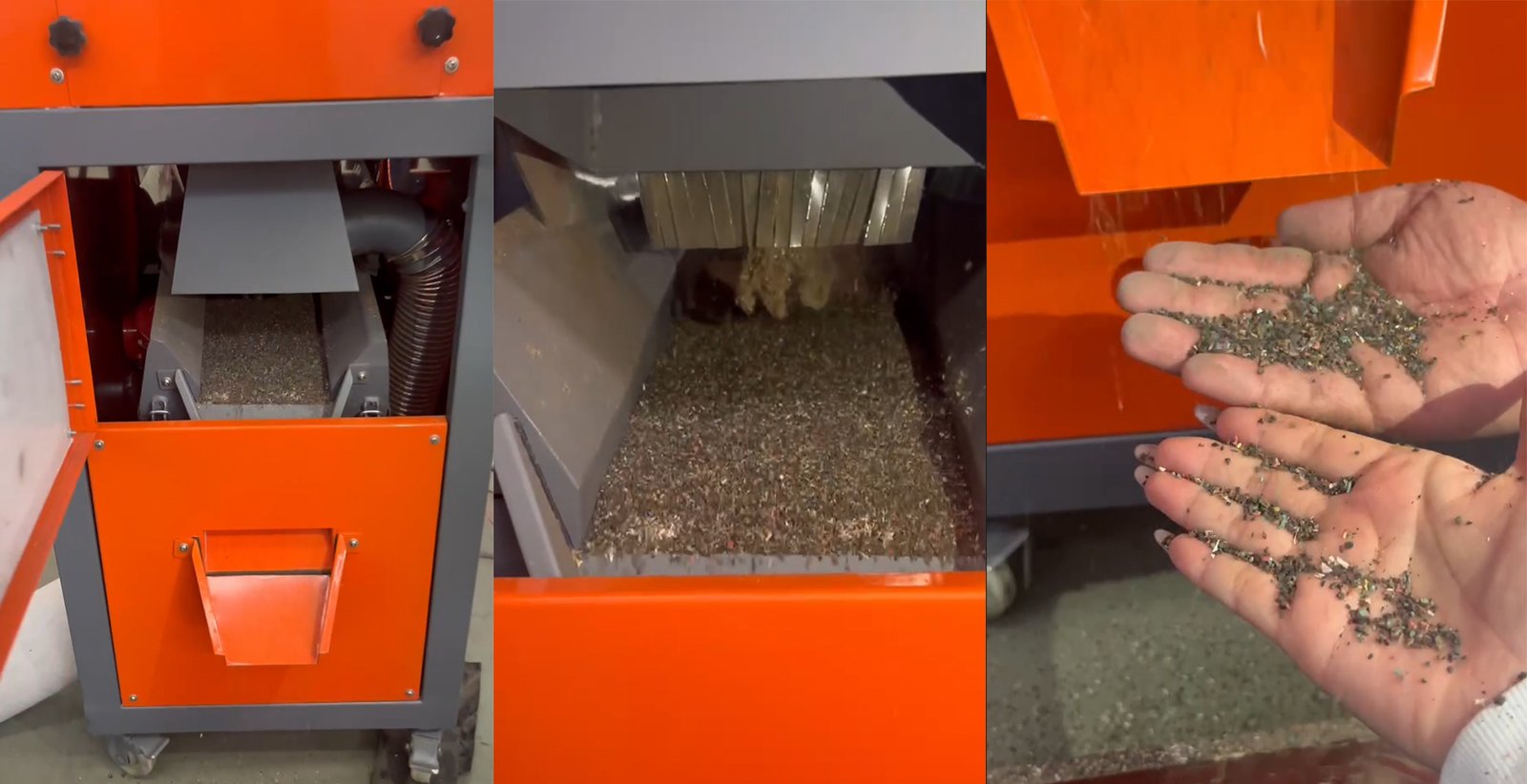

Separating: Firstly through air separator to get plastic and copper, secondly remainingmaterial is separated by electrostatic separator to get plastic and copper.
Dust Collecting: The dust generated during sorting is collect by pulse bag filter, andwon’t contribute secondary pollution, dust collect efficiency can be 99%.
