Miracle intermediate frequency melting furnace is used for the melting of steel, copper, gold, silver, aluminum and other materials. The intermediate frequency electric furnace adopts Siemens IGBT imported power devices, which is more integrated and miniaturized, and the effective output power reaches more than 95%. The medium-frequency magnetic field has a magnetic stirring effect on the molten metal, which is conducive to the homogeneity of the composition and the dross. According to the smelting requirements of different materials, there are floor smelting furnaces, hand-cranked smelting furnaces, electric smelting furnaces, and hydraulic smelting furnaces.
Working Process

Connect the power supply and cooling water interface, and check whether the water and electricity are connected. Put the materials to be smelted, such as gold, silver, iron, and copper, into the furnace, turn on the switch, adjust the power, and after starting the power, the temperature of the furnace body will increase evenly. After smelting for 20-30 minutes, the solid metal will become liquid, turn off the switch, and guide the smelted metal liquid into the mold.
Techinical Parameter

| Model | Power | Smelting capacity(kg) | ||
| Steel/Stainless Steel | Copper/Gold/Silver | Aluminum/Aluminum Alloy | ||
| MF-15 | 15KW | 3 | 10 | 3 |
| MF-25 | 25KW | 5 | 20 | 5 |
| MF-35 | 35KW | 10 | 30 | 10 |
| MF-45 | 45KW | 18 | 50 | 18 |
| MF-70 | 70KW | 25 | 100 | 25 |
| MF-90 | 90KW | 40 | 120 | 40 |
| MF-110 | 110KW | 50 | 150 | 50 |
| MF-160 | 160KW | 100 | 250 | 100 |

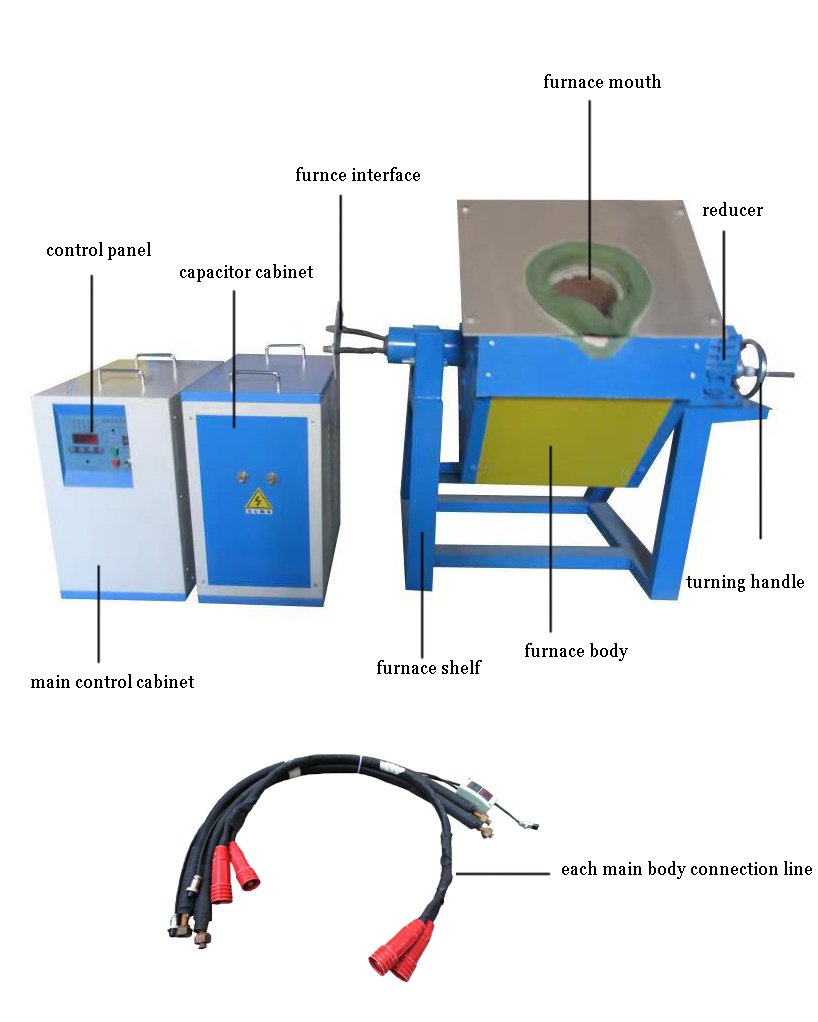

Porduct Details



Equipment Standard Configuration:
- Medium frequency power supply*1
- Compensation capacitor cabinet*1
- Furnace body (including furnace body bracket, manual or electric turning device)*1
- Water cooling cable*2
- Equipment connection line*1
- Remote control line*1
- Instruction manual*1
