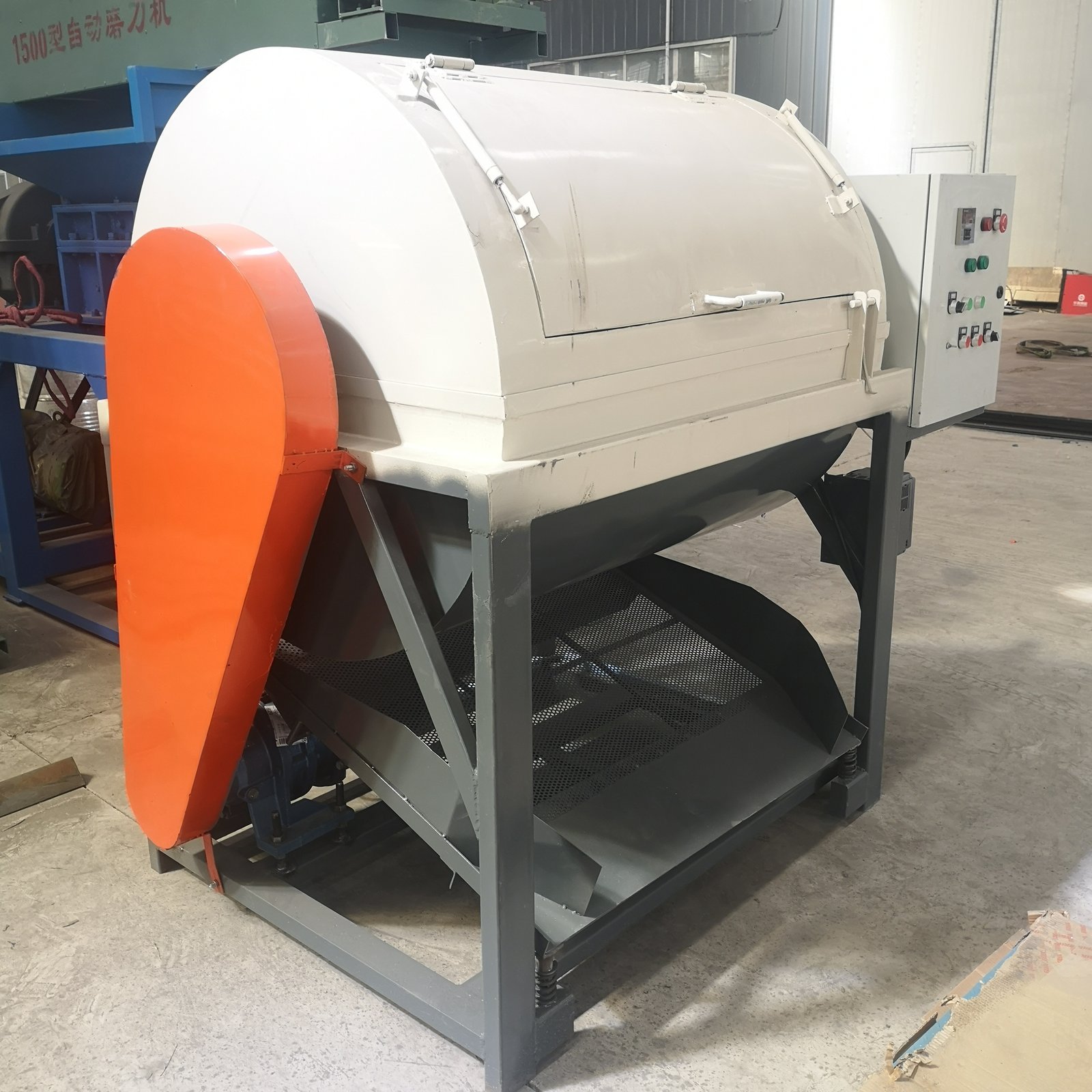

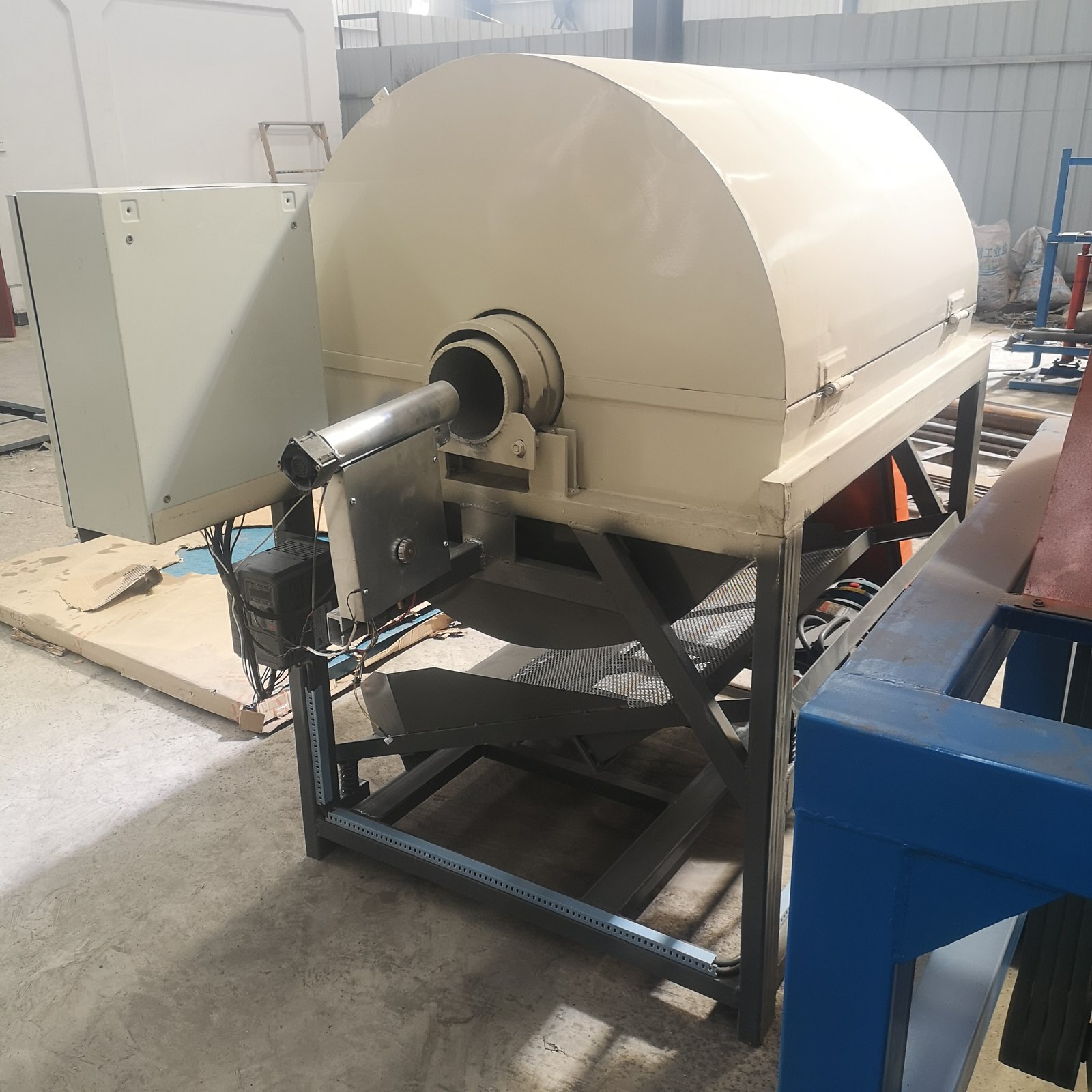

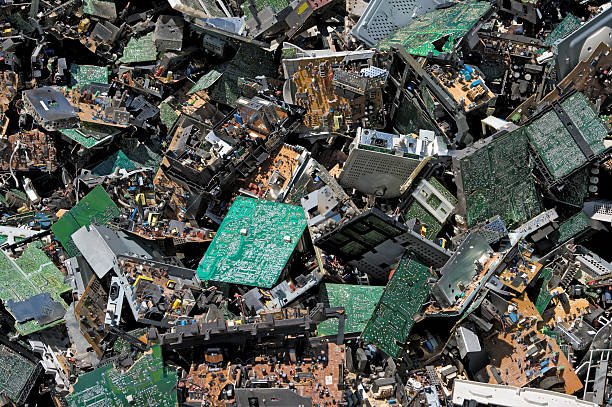

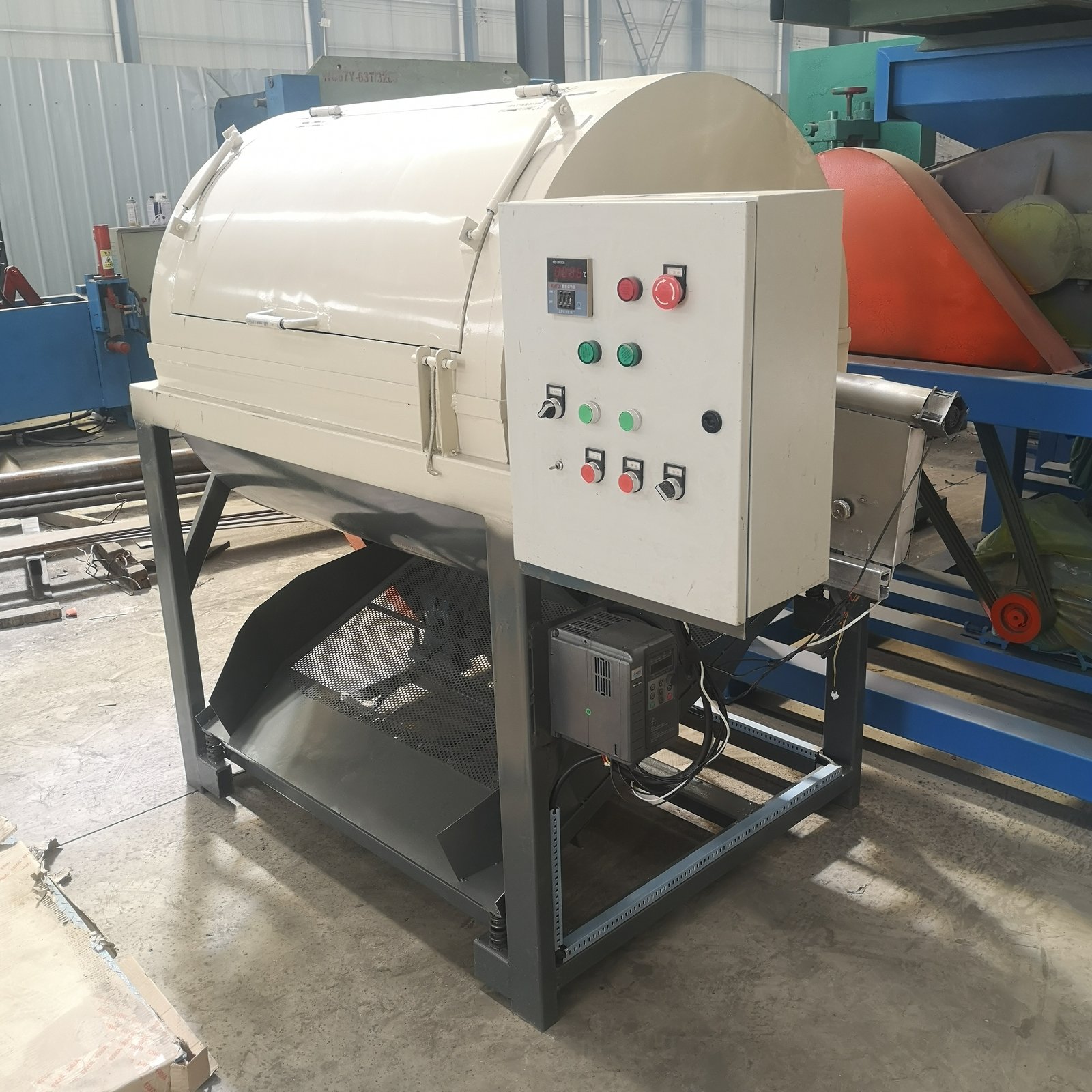

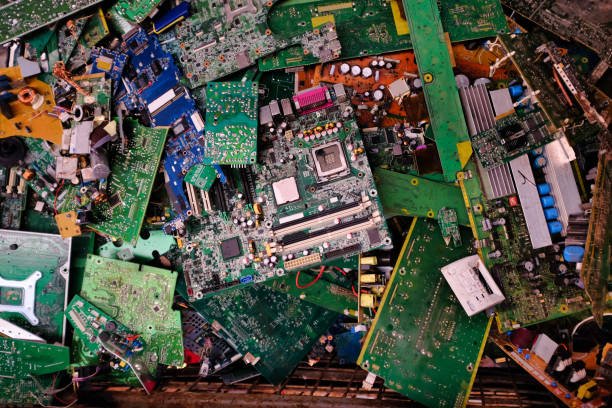

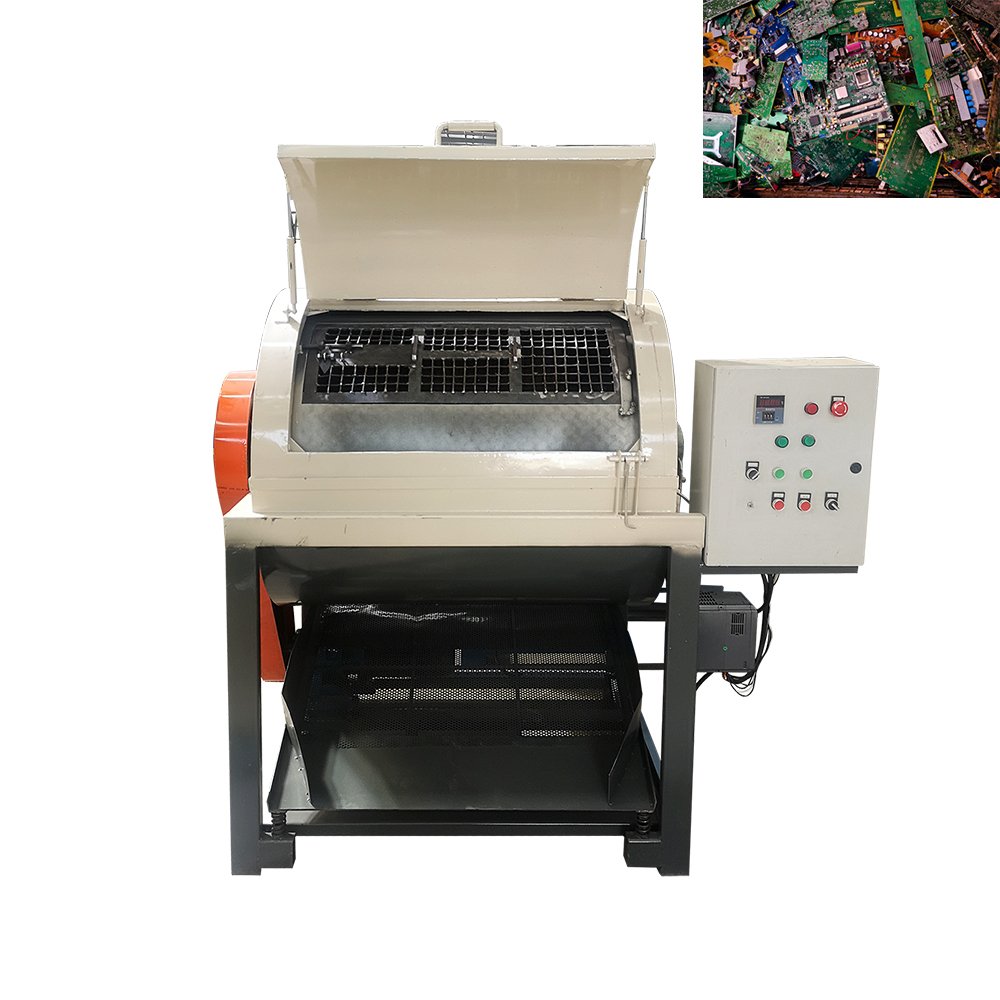

PCB components dismantling machine is used to remove the electronic components on different PCB boards form discarded TV sets,tape recorders, computers, etc. On the one hand, impurities can be removed, and on the other hand, the electronic components can be recycled and reused.
The specific process is to put the waste circuit board into the dismantling machine for high temperature heating, and the tin removal and disassembly can be completed in one step. The advantage is that it can reduce the damage of components and the loss of precious metals.
Product Details
| Model | YS-80-90 | YS-90-110 |
| Temperature(℃) | 25-300 | 25-300 |
| Speed(r/min) | 5-60 | 5-60 |
| Power(kw) | 3.75 | 4.75 |
| Dimension(mm) | 1680*980*1420 | 1880*1080*1580 |
How to Work?
Feed the circuit board into the dismantling machine, then into drum with sieve holes.
Start up the electric heating device, heated to a certain temperature, the tin on the circuit board start to loosen and melt.

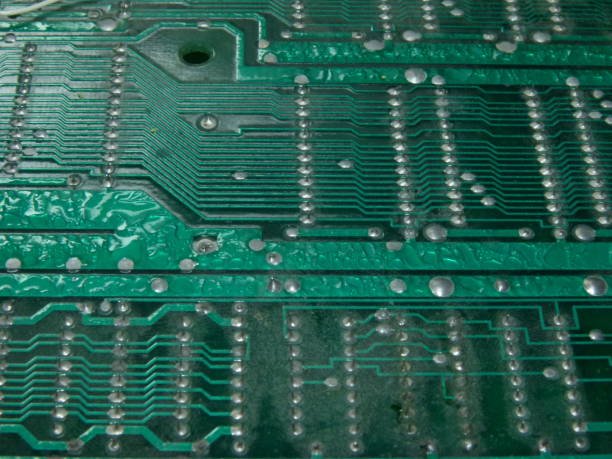

Through the rotation of the roller and internal material friction, the tin, electronic components and circuit board are separated.

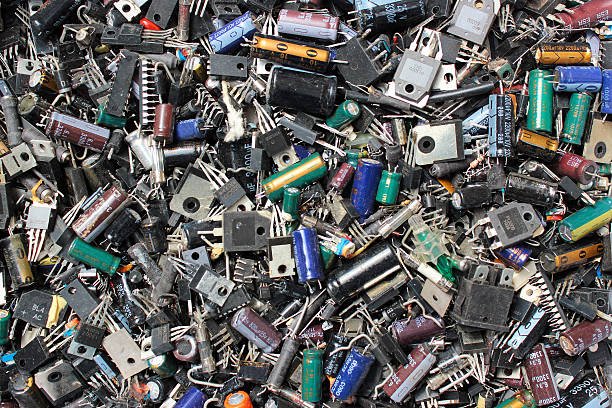

To get dismantling components.
